GODIAG GT100 OBDII 16PIN Protocol Detector ECU Connector OBDII BreakOut Box

$129.00 $99.00

● GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
● It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
● Able to connect the single modules or multiple modules of the vehicle.
● Connect with any diagnostic tool to tell whether the car communication is good or not.
● Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
● One Year Warranty.

Out of stock

Security Payment

paypalvisamastergoogle payapple payamerican expressbancontact

GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.


GODIAG GT100 OBDII 16PIN Protocol Detector ECU Connector OBDII BreakOut Box

GODIAG GT100 OBDII 16PIN Protocol Detector ECU Connector OBDII BreakOut Box



GODIAG GT100 Highlights:

1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.

2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.

3. Able to connect the single modules or multiple modules of the vehicle.

4. Connect with any diagnostic tool to tell whether the car communication is good or not.

5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.

6. One Year Warranty.



GODIAG GT100 Features:

- ECU connection
- OBDII Protocol Detector
- The cable can be extended
- Optional dedicated adater
- Comprtible with lost of devices
- Convert OBD1 diagnositc interface to the standard OBD2 diagnostic interface
- Save ECU data when replacing vehicle battery.



GODIAG GT100 Function and Operation Guide:

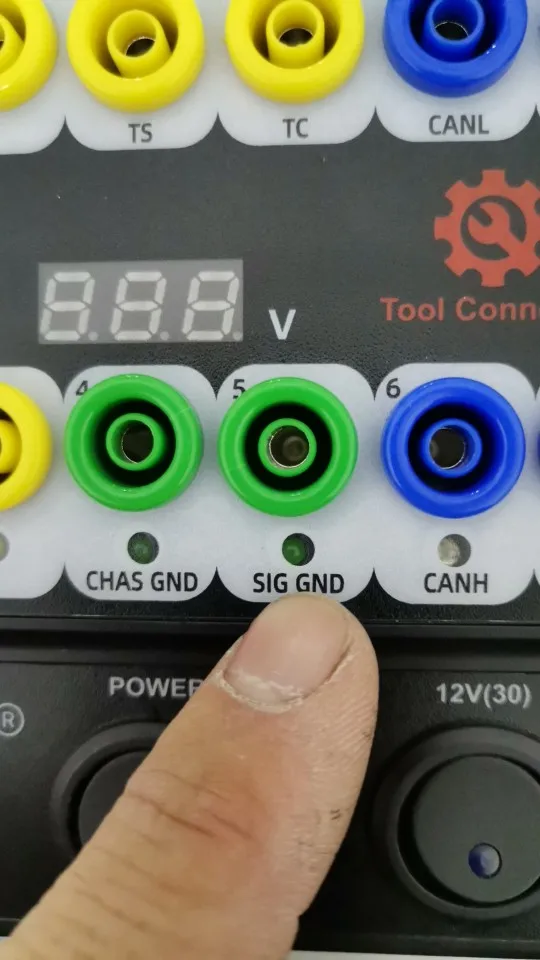

- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.

- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

Indicator Meaning:



How to use GODIAG GT100 OBD II Break Out Box ECU Connector

1. OBDII Protocol Detector & communication detection

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.
2). When the device displays the voltage, turn on the power switch of GODIAG GT100.
3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

2. ECU connection: single module connection

GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
3). To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

3. Banana plug extension connection:

Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

4. Convert OBD1 diagnostic interface to the standard OBD2

Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

5. Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

6. When to use the extension cables:

The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

7. Able to power the car when replacing the used battery.

How to use GODIAG GT100 OBD II Break Out Box ECU Connector

1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
Notice
*Turn on the power switch of Godiag GT100.
*Don't turn on the ignition switch, don't start the car.

2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

8. The dedicated adapter will be released (help GT100 connect to the special ECU module)

How to use GODIAG GT100 OBD II Break Out Box ECU Connector



Hardware Connection Diagram:

Hardware Connection Diagram



GODIAG GT100 OBD Breakout Box Specifications:

GODIAG GT100 OBD Breakout Box Specifications



GODIAG GT100 Package List:

1pc x Host
1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V
1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54mm connector female pins


Note: It's Pre-order tool, not in stock yet. If you need it please contact our customer service online.
