PADFLASHR ECU Master version, full protocol stored in the USB dongle.
PADFLASHR ECU Supports cars, trucks, bikes, agricultural vehicles via OBD, OBDvr, bench and boot.
PADFLASH is a professional tool for automotive workshops and chip tuners. It is designed to diagnose, repair and reprogram engine and transmission control units of cars, trucks, special vehicles, boats, and yachts, bikes, agricultural and many other vehicles.
PADFLASHR ECU Product Features:
R&W Fast, Stable, Checksum, VR Read, Real Read, Clone Read, Clone ECM, Friendly UI, Multi-port
PADFLASHR ECU Supported ECU Brands:
Bos-ch, Del-phi, Den-so, Sie-mens, Mag-neti, Hit-achi and more...
PADFLASHR ECU Full Version Software
1:Car ECU +TCU ( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
2:TURCK ECU+TCU(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
3:TRACTOR/MARINE ECU+TCU(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
4:MOTOBIKE ECU+TCU(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
Product Comparison Among PADFLASH, FOXFLASH and Other Tools
PADFLASH Device Installation Process
After receiving the device, please follow the steps below to install it
1: Please install Teamviewer remote control software on your computer
2: Connect the device host USB cable to the computer
3: Insert the USB KEY that comes with the device into the computer
4: Maintain a good working network
5: Turn on your Teamviewer device and send the remote control ID and password to your sales
6: Remote technical staff is online to assist you with installation online.
7: For the convenience of customers, please leave a WhatsApp or email address to facilitate technical flexibility to connect with customers for installation and activation.
8: Operating system requirements: Currently, WIN7 64 is recommended as the main choice for better stability. WIN10 is currently under testing, and customers are not recommended to install WIN10 64. If it is stable, the win10 64 operating system will be released.
9: Computer hardware requirements: RAM not less than 4GB, CPU not less than 2.5GHz
Warm reminder: Users should not disassemble the device casing by themselves, otherwise the machine will be damaged and the warranty will be void.
PADFLASHR Software Display

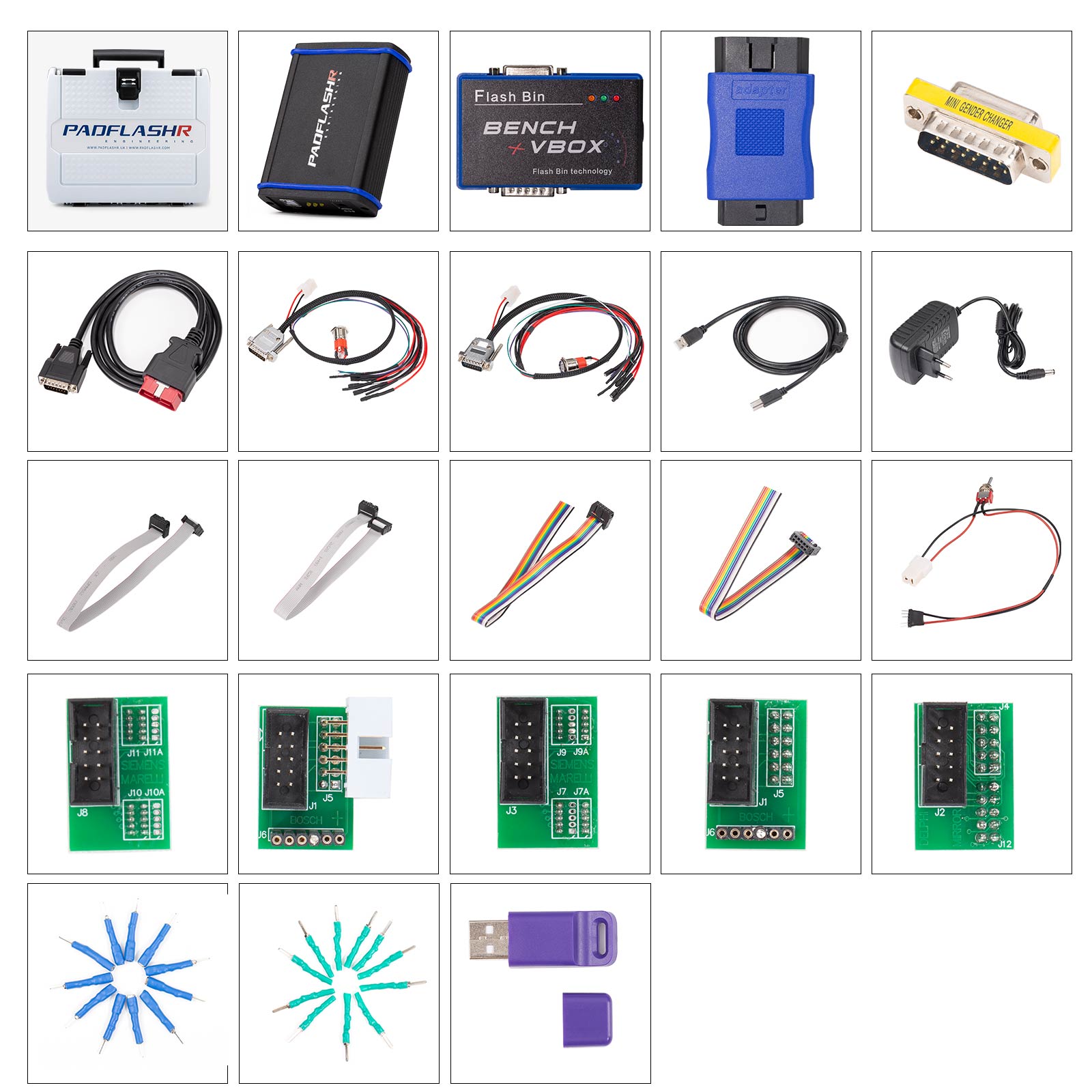

PADFLASHR ECU Package List:
1pc x main unit
1pc x BENCH VBOX
1pc x OBDII main cable
1pc x Truck OBD adapter
1pc x Bench Boot Cable(for New Style Trucks)
1pc x Bench Boot Cable(for Old Style Trucks)
1pc x power adapter
1pc x MINI adapter
1pc x USB Key
5pcs x BDM JTAG adapters
4pcs x wiring pins
2pcs x wiring pins
1pc x adapter cable
2pcs x bdm jtag cables
2pcs x bdm jtag cables(grey)
11pcs x adapter pins(green)
11pcs x adapter pins(blue)
FAQs
1: Why I need use this padflash, I already have others chiptuning tools.
Answer: No one tuner can use one tool cover all protocols, for example, even though you have tool which includes pcr2.1, you cant read it in real test. But another tool also have pcr2.1, you will get it works on others tool, that's why we need a lot of tools.
2: Does it have sub fee every year?
Answer: no
3: Master or Slave?
Answer:Master
4: Need offline or online
Answer: online use because need checksum online
5: Support virtual read or not
Answer: yes, very important things , it has VR read.
6: Device Compatibility Which vehicle models and ECU types are supported?
Answer:it is compatible with standard OBD-II, CAN, K-Line, and other communication protocols. It supports various vehicle types, including passenger cars, commercial trucks, motorcycles, and agricultural machinery, bikes.
7: What are the hardware specifications?
Answer: USB, 12v and 24v support.
8: Usability & Operation?
Answer: support automatic ECU identification, or manual selection. It requires user's manual support.
9: After-Sales Support
1 year warranty online support, online installation support, provide remote assistance service.
10: Security Feature:
Answer: It has the dongle to keep hardware safe.
