Yanhua ACDP Module 34 for V-W MQB RH850 IMMO Add Keys & All Key Lost & Mileage Correction Work on both ACDP-1 and ACDP-2 Master
Yanhua Mini ACDP Module 34 Descriptions:
Module 34 included 9 piece bench interface board and License.
It can work both ACDP-1 and ACDP-2 Master.
If you have MQB-33 Module already, you are offered buy the new MQB RH850 module 34 alone.
No removing components.
No lifting pins.
No wring.
No hurt on cluster.
Yanhua Mini ACDP Module 34 Functions:
1: Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
2: Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
3: Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
4: Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instruments.
Yanhua Mini ACDP Module Feature:
1: Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2: The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3: The software comes with pin detection function, making data reading and writing safer and more reliable.
Supported odometer number (not limited to):
R71F701401/R7F⁷01402/R7F7014075A:
83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640,
3GB920790, 56G920790, 3VD920740B
R7F701401/R7F701402/R7F701404/R7F701405/R7F701406/R7F7014075C:
3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C, 5GD920640D, 5ED920860C, 19G920650B,
19G920650C, 55G920650A, 55G920650B, 55G920650C, 5HG920340, 5HG920340A, 5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E
D70F3423 +95320: 31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C, 34D920850E, 31G920860A, 34D920850G
D70F3426+95128: 5GG920640, 5GG920860, 5GG920860A, 5G0920861A

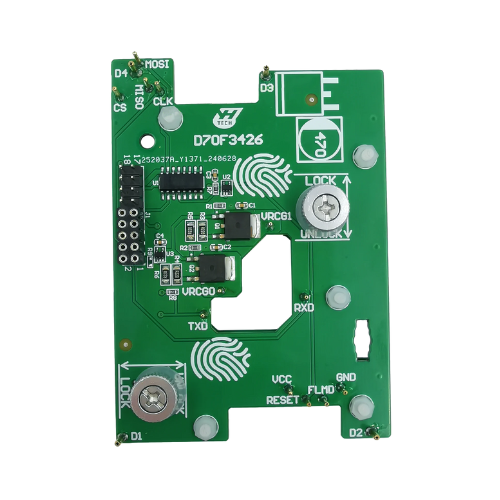

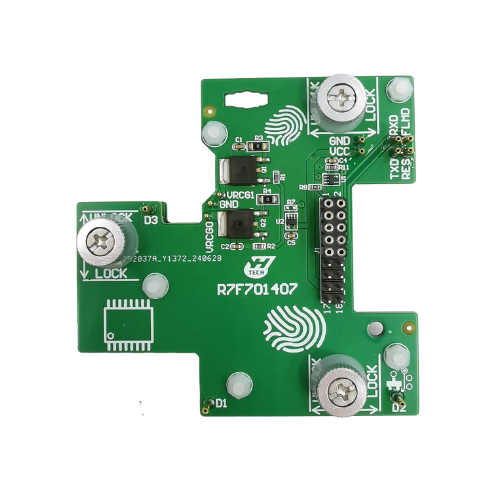

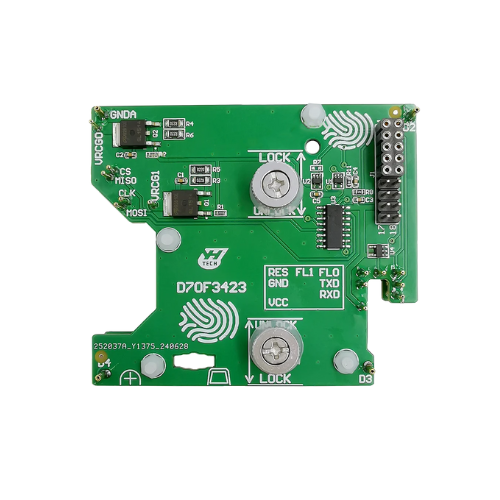

Interface Board
D70F3423 1 piece
D70F3426 3 piece
R7F714011 piece
R7F714021 piece
R7F714041 piece
R7F714061 piece
R7F714071 piece
Packing List:
Interface Board
D70F3423 1 piece
D70F3426 3 piece
R7F71401 1 piece
R7F71402 1 piece
R7F71404 1 piece
R7F71406 1 piece
R7F71407 1 piece
